Scanning SONAR Transducer for 360° Search

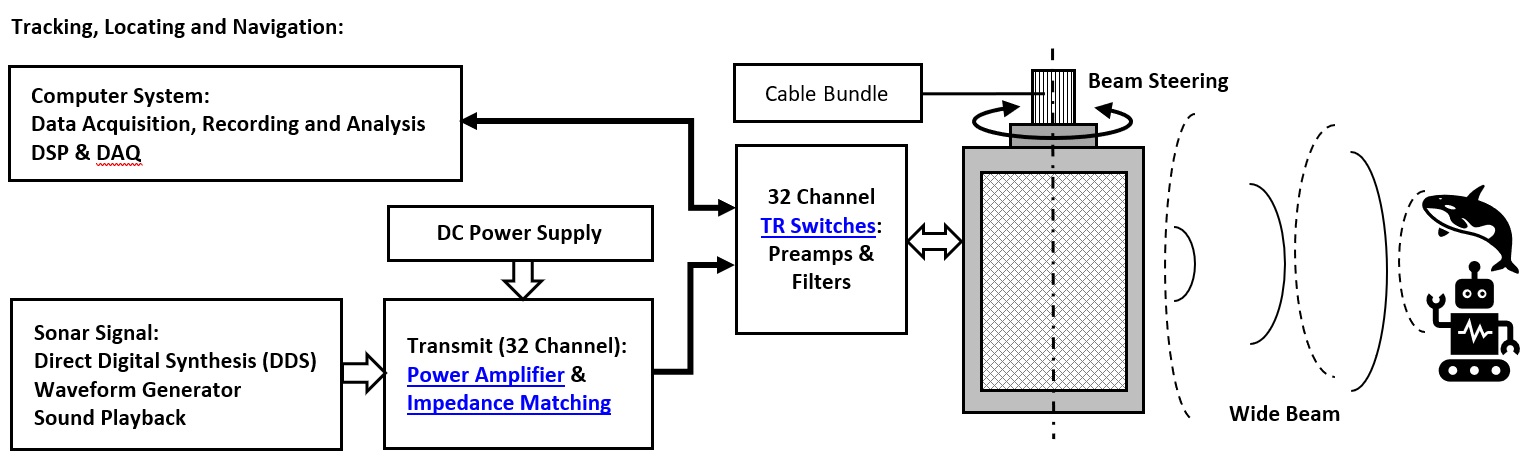

Scanning SONAR Transducer for 360° Search Underwater Scanning Transducers are underwater 32-element cylindrical array transducers (Transmitting Sounds and Listening sounds), and directional beams are implemented with subarrays for scanning. Typical applications are acoustic positioning, tracking, echo locating, and navigation in horizontal plane in the ocean, rivers, and lakes.
The Scanning SONAR Transducers provide efficient solution to detect and locate fish schools and targets in the horizontal plane about hundreds and thousands meters with 360° searching. The transducers have superior performances for use in shallow water and near surface fishing. The subarray that operator determines sends out a pulse of narrow beam sound in specific directions and receive the echo reflected from targets; or, in passive listening mode, it searches the sounds emitted from sound sources with highly directional beam.

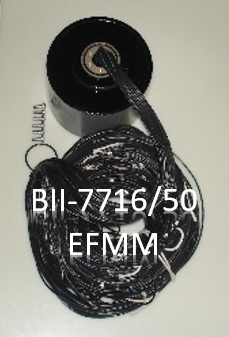

BII7710 Series Scanning SONAR Transducer: 360° View Field in Horizontal Plane, Electronic Steering.

Typical Applications
Scanning Sonar, Obstacle Avoidance	Fishery Sonar, Communication
Object/Target Detection and Tracking	Underwater Robotic and Vehicle (ROV, AUV, UUV)
Related Products
BII5000 Power Amplifier	BII6000 Impedance Matching
BII7630 Phased Array Transducer	BII7660 Multibeam Transducer: Imaging Sonar

BII7710 Datasheet

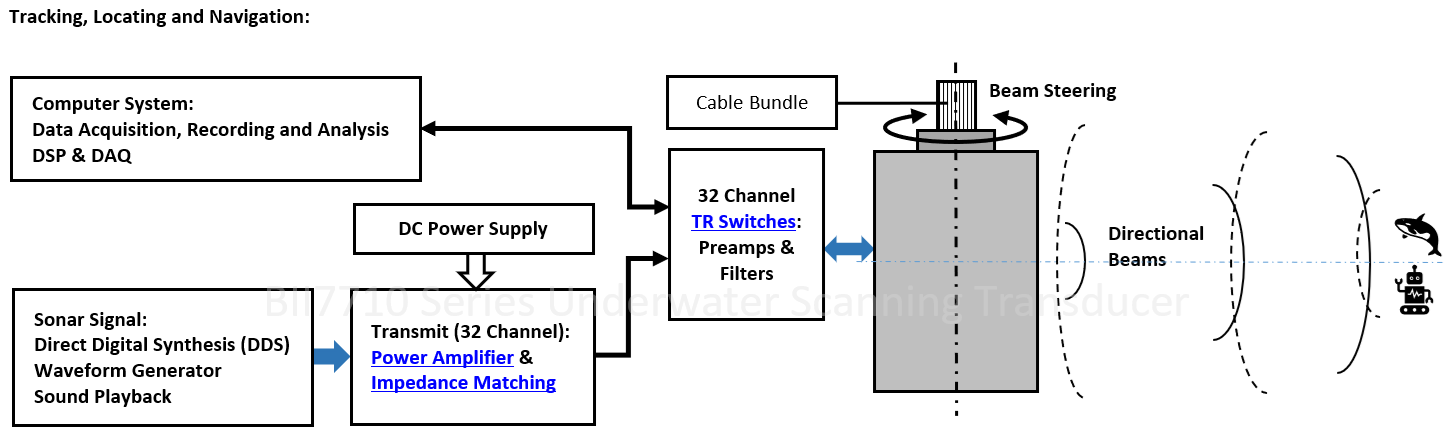

Scanning SONAR Transducer with Electronic Steering: 360° View Field in Horizontal Plane.
