Underwater Scanning Transducer
BII7770 Series Underwater Mechanical Scanning Transducer

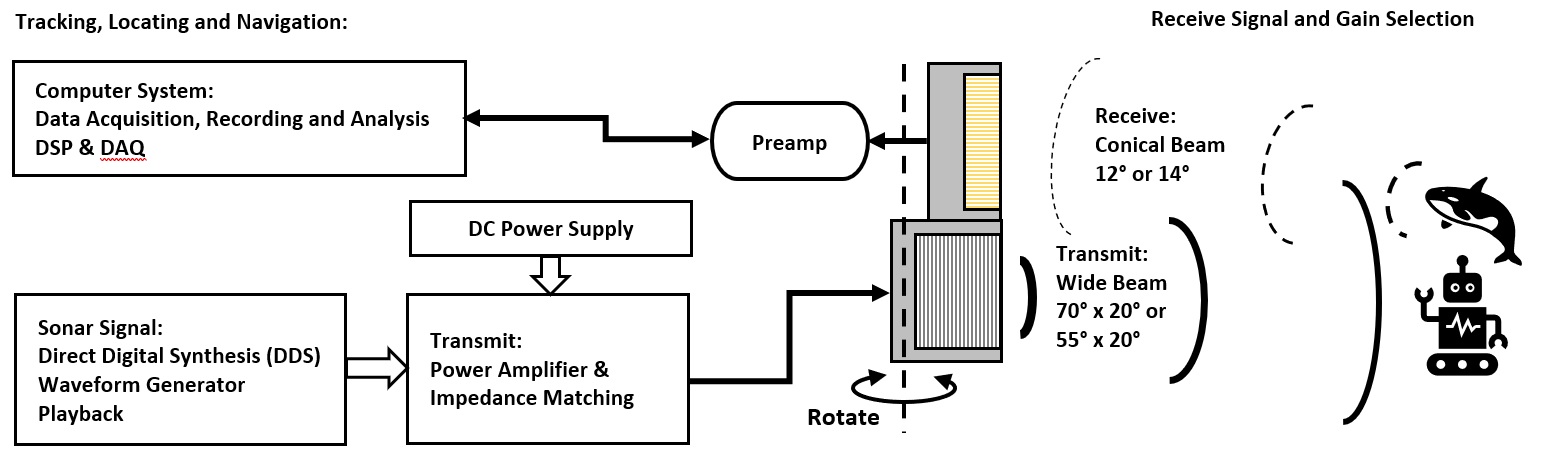

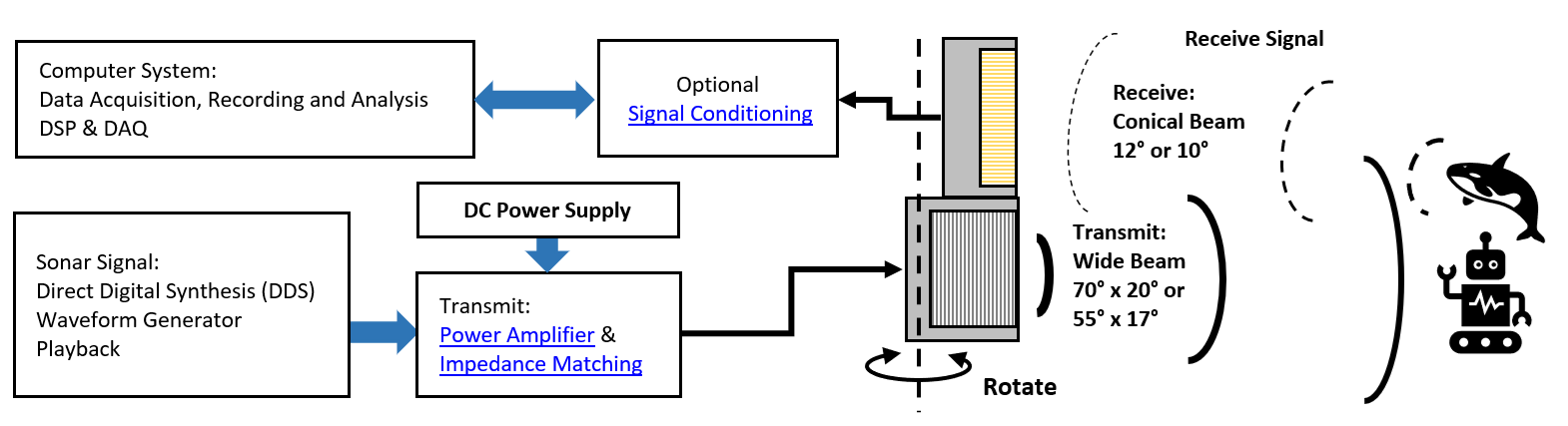

The Underwater Scanning Transducer integrates a wide beam projector and a narrow beam low noise directional hydrophone for mechanical scanning SONAR. Typical applications are long range acoustic positioning, tracking, echo locating, navigation, communication, and artificial acoustic target in horizontal or vertical plane in the ocean, rivers, and lakes.
| Typical Applications | |
| Artificial Acoustic Target:
Echo-Repeater Target, Active-Acoustic Target Underwater Telephone, Communication and Modem, Acoustic Release |
Underwater Acoustic Positioning: Transponder, Responder
Scanning Scanning SONAR, Tracking, Echo Locating and Navigation |
| Related Products | |
| BII5000 Power Amplifier. | BII6000 Impedance Matching for Transducers. |
| BII7710 Scanning SONAR Transducer: 360° Search, Electronic Steering. | Underwater Transducer: SONAR, NDT, and HIFU. |
| Scanning Transducer | Transmitting Frequency | Receiving Frequency | Documents |
| Wide Transmit Fan-shaped Beam Norrow Conical Receive Beam |
50, 60 kHz. | 1 Hz to 100 kHz | Datasheet |
