Preamplifiers and Array Amplitude Shading

Hydrophone Preamplifiers and Array Amplitude ShadingHydrophone Preamplifiers and Array Amplitude ShadingHydrophone PreamplifiersArray Amplitude ShadingHydrophone Preamplifiers

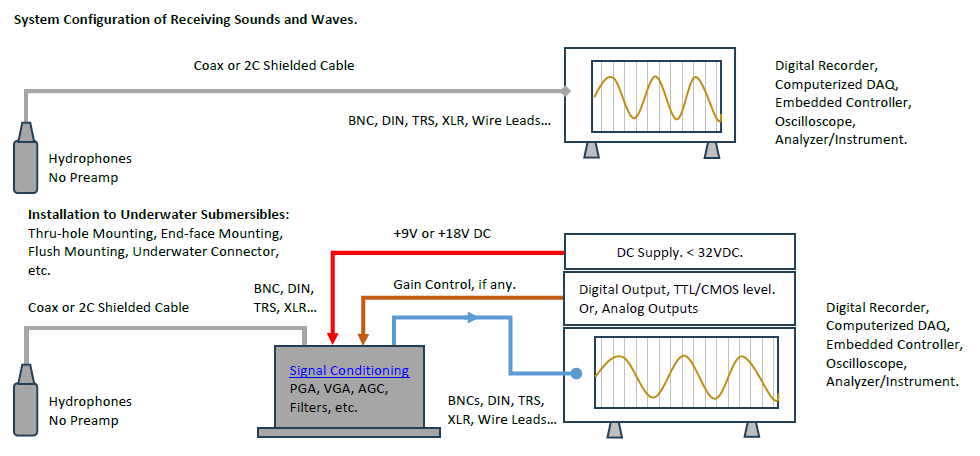

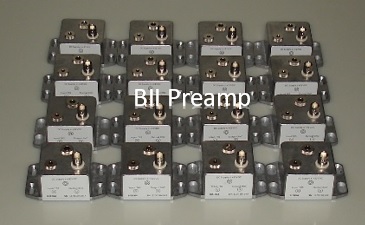

Benthowave manufactures low noise embedded voltage amplifiers (fixed gain, programmable gain and variable gain) with built-in filters for piezoelectric devices for uses in hydrophones, receiving array, echo sounding system and ultrasound instrumentation, whose gain and filter bandwidth can be customized. Benthowave preamplifiers cover the frequency range from 0.1 Hz to 30 MHz and drive long cable up to 1000m.

If you need transmitting & receiving switch with controllable receiving gains for an echo sounding project, please check out BII-2100 T&R Switch, which is designed to detect signals with high dynamic range.

Hydrophone Preamplifiers and Array Amplitude Shading

Technical notes
1. The cable has adverse effects on the signal quality in high frequency range. The longer the cable is, the worse the adverse effects is. If you use long cable in your project, you may specify customized output impedance of BII's preamplifiers to match cable impedance and the DAQ input impedance, for example, customized 50 ohms output impedance of BII preamplifier for 50 ohms RG58 coax of DAQ system.
2. How to choose preamplifier? If frequency of interest covers low frequency range up to 10kHz, a preamplifier with low current noise should be used. If frequency of interest only cover high frequency range greater than 10kHz, a preamplifier with low voltage noise should be used.

Related Products

Hydrophone Low Noise, Low Cost and Deep Ocean
Underwater Transducer SONAR, HIFU, Echosounder, Communication, Fishery ...

Model Maximum Cable Length Features Size (mm)
» BII-1010 1000m Low Power: 1.0mA
Bandwidth: 2MHz
Low Cost, Low Noise, Built-in Filter
Differential/Balanced Output
Single Power Supply
Potted Unit ΦDxL: 48x15
Coated PCB LxWxH: 30x8.9x5
Coated PCB LxWxH: 33x8.9x5
Coated PCB LxWxH: 33x10x5
» BII-1020 up to 100m
frequency dependent
Plug-in/Phantom/Line Powering
Low Power: 0.36mA@2.5 to 48VDC
Low Noise: <5nV/√Hz
Bandwidth: up to 3.5MHz
Single Ended Output
Single/Dual Power Supply

Potted Unit ΦDxL=33x15
Coated PCB: LxWxH=20x8.9x5
» BII-1030 1000m Variable Gain Amplifier
Gain: 0 to 96 dB
Bandwidth: up to 22 MHz
Single Ended Output
Single Power Supply
Potted Unit ΦDxL=73x23
Coated PCB LxWxH: 56x22x13
» BII-1040 200m Low Noise: 1.9(nV/√Hz)@1kHz
Gain: 28 to 60 dB
Bandwidth: up to 18 MHz
Single Ended Output
Dual/Single Power Supply
Potted Unit ΦDxL=60x15
Coated PCB LxWxH: 45x11x5
» BII-1050 200m Gain: 0 to 80 dB
Bandwidth: up to 4 MHz
Wideband Preamplifier
Built-in Filter, Low Noise
Single Ended Output
Single Power Supply
Potted Unit ΦDxL=48x15
Coated PCB LxWxH: 26x10x5
Coated PCB LxWxH: 32x10x5
Coated Round PCB ΦDxH: Φ25.4x10
» BII-1060 200m Low Power: 0.6mA
Bandwidth: up to 1MHz
0 to 60 dB Gain
Low Cost, Low Noise, Built-in Filter
Single-Ended or Differential Output
Single Power Supply
Potted Unit ΦDxL=48x15
Coated PCB LxWxH: 23x8.9x5
Coated PCB LxWxH: 30x11.5x5
Coated PCB LxWxH: 38x11.5x5
» BII-1070 10m Low Power: 4.5mA
Bandwidth: up to 30MHz
20/40/60 dB Gain
Low Noise, Built-in HP Filter
Differential or Single Ended Output
Single Power Supply
Coated PCB LxWxH: 33x10x5
» BII-1080 200m 26 to 60 dB Gain
Low Noise: 5.2(nV/√Hz)@1kHz
Bandwidth: up to 2MHz
Built-in Filter
Single Ended Output
Single Power Supply
Potted Unit ΦDxL=48x15
Coated PCB LxWxH: 33x10x5
» BII-1090 200m Low Noise: 5.2(nV/√Hz)@1kHz
Bandwidth: up to 1MHz
Digitally Programmable Gain: 60dB Range
TTL/CMOS Compatible
Differential or Single Ended Output
Single Power Supply

Potted Unit ΦDxL=48x15
Coated PCB LxWxH: 38x8.9x7
Coated PCB LxWxH: 43x11x7

Technical Note

Amplitude shading of a receiving array is a method through which the receiving responses of array elements are tuned to provide the most desirable directional pattern for a particular application. The array can be shaded to have a desirable beam width and response at central lobe, and suppressed responses at sidelobes, or vise versa.

Benthowave's preamplifiers have the property of tuning gain easily, which makes them be the best candidates for use in array amplitude shading.
