Side Scan Transducer: Underwater Imaging

Line Array TransducerLine Array Transducer: Side Scan Sonar Side Scan TransducerSide Scan Transducer

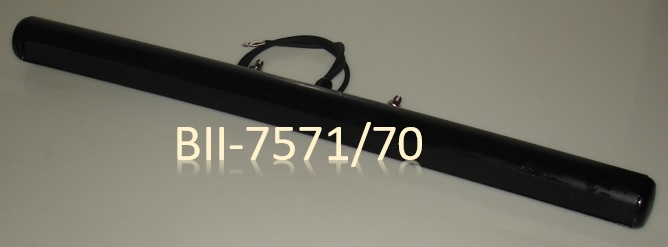

BII-7570 Side Scan Transducer: Underwater Imaging

Benthowave's side scan transducers are designed for use in underwater imaging, sea/river/lake-floor mapping, target location, mine hunting, fisheries... The beam covers wide across-track swath and provides high along-track spatial resolution in tens or hundreds meter range. Acoustic image of underwater bottom is achieved at grazing angles of incidence. (Note: BII does not provide hardware and software for data sampling and processing.)

Optional mounting parts are available for installation on portable-mounting apparatus, submersibles, pipe, tank or vessel.
An impedance matching transformer is optional to provide correct impedance match to load requirements of power amplifiers.
A Transmit & Receive Switch is available to be integrated inside transducer for amplifying the received sounds and driving long cable.

Features Related Products
100 to 500kHz, Single or Dual Frequency BII-2100 Transmitting & Receiving Switch
High Along-track Spatial Resolution BII-5000 Power Amplifier
Wide Across-track Swath BII-6000 Impedance Matching and Tuning Unit
High Power BII-2030 Envelope Detector
Portable, Easy Installation Sonar Signal Generation

Suggested Application
Sea/River/Lake-floor Mapping
Target Location Underwater
Mine Hunting
Education on Acoustic Imaging
Security Monitoring/Intruder Detection


Side Scan Transducer BII-7571 BII-7572 BII-7573 BII-7574 BII-7575 BII-7576
Frequency: 100 kHz 120 kHz 200 kHz 500 kHz 100kHz/500 kHz 600 kHz
Survey Range: 350m 320m 200m 100m 350m/100m 70m
Transmitting Voltage Response:
(dB µPa/V@1m)
171 173 178 185 171/185 173
Receiving Voltage Response:
(dB V/uPa)
-190 -192 -196 -202 -190/-202 -197
Beamwidth (-3dB):
2.0° 1.7° 1.0° 0.4°
Beamwidth (-3dB):
50° 50° 50° 50° 50° 40°
Quality Factor: 5 5 5 7 5/7 15
Maximum Drive Voltage: 600Vrms 600Vrms 600Vrms 600Vrms 600Vrms 600Vrms
Size (LxWxH): 400x30x30mm 400x30x30mm 400x25x25mm 400x20x20mm 400x40x30mm 150x40x30mm
Pulsed Signal Type: Ricker, CW, Chirp/FM
Temperature Sensor: 1. Default: No built-in temperature sensor.
2. Built-in temperature sensor. When ordering, append TS to part number for integrating a temperature sensor in the transducer. Click Temperature Characteristics for more information.
Impedance Matching & Tuning: Custom BII-6000: 4 to 16Ω, 50Ω, 60Ω, 75Ω, 100Ω,..., Not Included, order separately.
BII does not integrate BII-6000 into the transducer housing.
TR Switch: BII-2100 Transmitting & Receiving Switch. BII does not integrate BII-2100 into the transducer housing.
Depth Rating: 300m

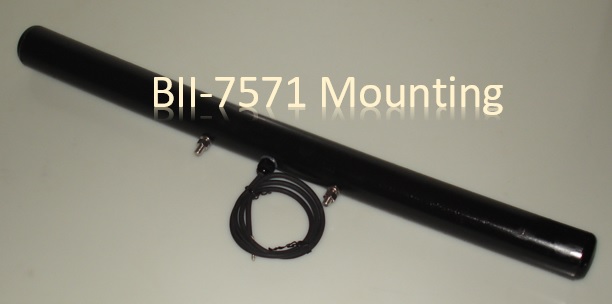

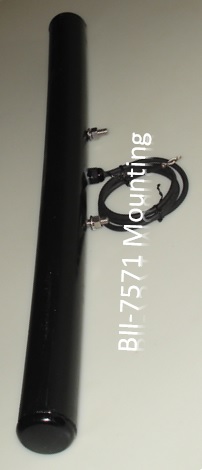

Mounting: 1. Default: Free-hanging
2. Free-hanging with Male Underwater Connector (FHUWC)

3. Thru-hole Mounting: (THSO)
4. Thru-hole Mounting with Double O-ring (THDO)
5. Bolt Fastening Mounting (Stainless Steel): (BFM)
6. Two Mounting holes for M8-1.25 fastening bolt. (TMH)
Click Transducer and Hydrophone Mounting for more detailed information on mounting/installation.
Cable: Shielded Cable (SC)
Connector: 1. Wire Leads (WL)
2. Underwater Mateable Connector (UMC)
3. MIL-5015 Style (5015)
4. Custom (custom)
Operating Temperature: -10°C to +60°C
Storage Temperature: -40°C to +60°C
How to Order: Click How to Order.
Transducer Wiring: Click Transducer Wiring for detailed wiring information.
