BENTHOWAVE INSTRUMENT INC. Acoustic Transducer & System

Power Amplifier: SONAR / HIFU Transducer / Headphone

Power AmplifierSonar Power AmplifierPower AmplifierPower Amplifier

Benthowave power amplifiers are designed to drive piezoelectric transducers, which can be used in short range and long range underwater active SONAR system, acoustic communication (FSK, PSK and Spread Spectrum System), nonlinear acoustics (cavitation, streaming and nonlinear interaction, HIFU), underwater acoustic positioning and bioacoustic audiogram and behavior studies, and to drive headphones for underwater sound listening.

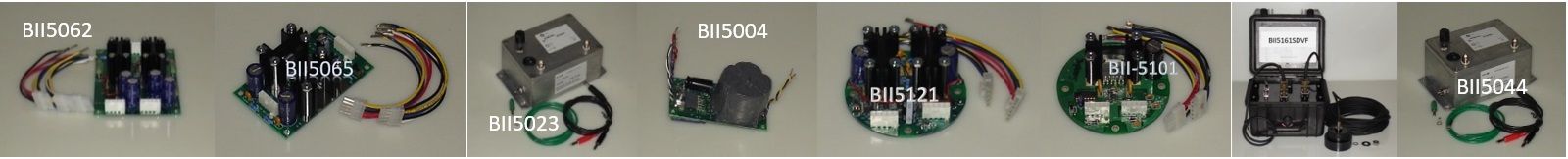

BII provides two kind of packages of power amplifiers for different filed application:

Package: Features: Signal Type:
ΦD4" round PCB with Connectors Pulsed Signal, Continuous Signal
Small Rectangular PCB fit for ΦD1½" (ΦD38.1mm) Cylinder Housing Pulsed Signal ONLY, Duty cycle <10% or 20%

If you need transmitting & receiving switch with controllable receiving gains for an echo sounding project, please check out BII-2100 T&R Switch, which is designed to detect signals with high dynamic range.

If you need portable underwater acoustic transmitter in your SONAR, communication or bioacoustic project, please have a look at BII-8030 Underwater Acoustic Transmitters, which integrate power amplifier, matching network and SONAR transducer into one unit.

If you need portable underwater acoustic transceiver in your SONAR, communication or bioacoustic project, please have a look at BII-8080 Underwater Transmitting and Receiving Systems, which integrate power amplifier, matching network, TR switch, preamplifier and SONAR transducer into one unit.

Sonar Power Amplifier

Technical notes
The cable has adverse effects on the power amplifier performances in high frequency range. The longer the cable is, the worse the adverse effects is. If you use long cable in your project, you may have an impedance matching unit in power amplifier to match cable and load impedance such as 50 ohms RG58 coax and 50 ohms load.

Related Products

Underwater Transducer: SONAR, HIFU, Echosounder, Communication, Fishery ... BII-2100 Transmitting & Receiving Switch
BII-6000 Transducer Impedance Matching and Tuning BII-8030 Underwater Acoustic Transmitter
BII-8080 Transmitting and Receiving System BII-4000 Signal Generation for Underwater Acoustic System

Model Power Capability Bandwidth Source Level Capability
(dB re µPa)
Typical Application Features
» BII-5000 54 Watt 150 kHz 186.6 + DI Echo Sounding
Communication
Fishery Sonar
Marine Animal Sound
Navigation/Positioning
Artificial Acoustic Target
Transmitting Array Shading
Linear Wideband
» BII-5010 7 Watt 3 MHz 177.7 + DI Ultrasonic Testing
Pulse Signal Amplification
Short Distance Gage
Sound Velocimeter
Laboratory Acoustic System
Linear Wideband
» BII-5020 62 Watt 500 kHz 187.1 + DI Navigation
Echosounder
Distance Gage
Sonic Processing
HIFU Transducers
Sound Velocimeter
Marine Animal Sound
Sub-bottom Investigation
Seafloor-mapping System
Underwater Communication
Artificial Acoustic Target
Transmitting Array Shading
Linear Wideband
» BII-5030 12 Watt 1.2 MHz 180.0 + DI Image Sonar
Distance Gage
Sonic Processing
HIFU Transducers
Sound Velocimeter
Marine Animal Sound
Artificial Acoustic Target
Transmitting Array Shading
Underwater Communication
Linear Wideband
» BII-5040 20 Watt 3 MHz 182.3 + DI Ultrasonic Testing
Pulse Signal Amplification
Short Distance Gage
Sound Velocimeter
Laboratory Acoustic System
Linear Wideband
» BII-5060 200 Watt 100 kHz 192.2 + DI Navigation
Echosounder
Sound Velocimeter
Distance Gage
Sonic Processing
Marine Animal Sound
Artificial Acoustic Target
Transmitting Array Shading
Sub-bottom Investigation
Seafloor-mapping System
Underwater Communication
Linear Wideband
» BII-5100 288 Watt 1 MHz 193.9 + DI Navigation
Echo Sounding
Sonic Processing
HIFU Transducers
Navigation/Positioning
Artificial Acoustic Target
Sub-bottom Investigation
Seafloor-mapping System
Switching Mode
Efficiency > 93%
» BII-5110 540 Watt 3 MHz 196.3 + DI Navigation
Echo Sounding
Sonic Processing
HIFU Transducers
Navigation/Positioning
Artificial Acoustic Target
Sub-bottom Investigation
Seafloor-mapping System

Switching Mode
Efficiency > 93%
» BII-5120 256 Watt 200Hz to 2 MHz 191 + DI Navigation
Echosounder
Distance Gage
Sonic Processing
HIFU Transducers
Sound Velocimeter
Marine Animal Sound
Sub-bottom Investigation
Seafloor-mapping System
Underwater Communication
Artificial Acoustic Target
Transmitting Array Shading
Ultrasonic Power Amplifier
» BII-5200 200 mW 30 kHz < 120 (dB re 20µPa) Headphone Power Amplifier
Underwater Sound Listening
Audio Power Amplifier

SONAR Power Amplifier

Technical Notes

Class AB is a cross between class A and Class B operation. the two transistor elements are designed to conduct more than half the cycles, and push-pull circuit is used to reproduce a complete cycle of signal. So class AB operation is to minimize distortions - especially cross-over distortion. The efficiency is below 78.5%.
In a Class D or switching amplifier, all power devices operate at switch mode. They are either fully on or fully off. Very little time is spent during transitioning between those two states. High power conversion efficiency of above 90% can be achieved.
